Elevation grid heatmap reports are game-changers in the world of heavy civil construction. These visual marvels provide a clear, concise way to understand the lay of the land and make informed decisions about your project. In this guide, we’ll explore the ins and outs of elevation grid heatmap reports and how they can revolutionize your construction workflow.
Understand elevation grid heatmaps and their role in heavy civil construction
Picture this: you’re standing at the edge of your construction site, looking out over a vast expanse of dirt, rocks, and uneven terrain. How do you make sense of it all? That’s where elevation grid heatmaps come in.

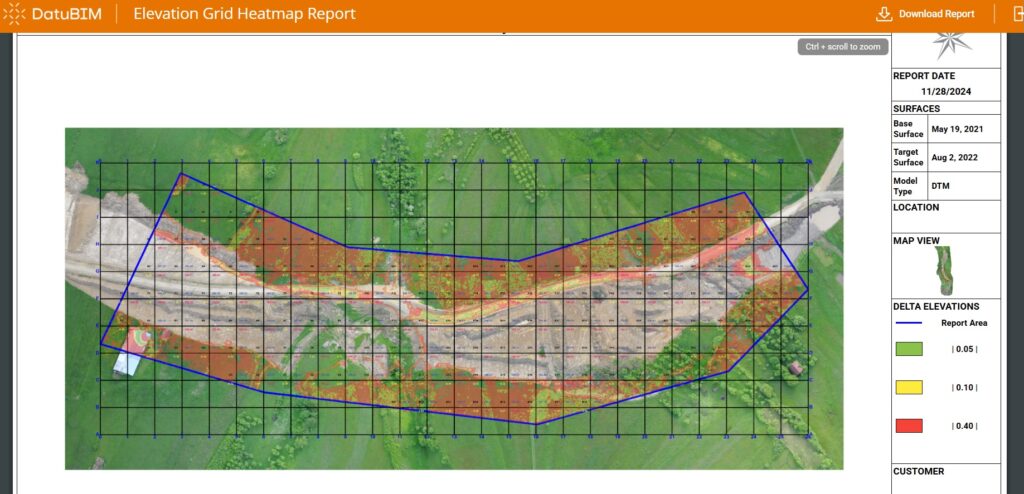

These color-coded visual representations show you the difference between the existing ground surface and your proposed design elevations. They’re like a topographical map on steroids, giving you a bird’s eye view of where you need to cut and where you need to fill.
But elevation grid heatmaps aren’t just pretty pictures; they serve a vital purpose in heavy civil construction:
- They help you identify areas that require grading to achieve the desired surface elevations
- They allow you to calculate cut and fill volumes more accurately, saving you time and money
- They provide a clear communication tool for stakeholders, from project managers to machine operators
In essence, elevation grid heatmaps take the guesswork out of site preparation and earthwork. They give you a digital terrain model (DTM) that you can use to make informed decisions and stay on track throughout your project.
So, whether you’re building a highway, preparing a site for a new development, or tackling any other heavy civil construction project, elevation grid heatmap reports are your secret weapon for success.
Collect accurate data for creating elevation grid heatmaps
Now that you understand the power of elevation grid heatmap reports, you might be wondering: how do I create them? It all starts with collecting accurate data.
Gone are the days of relying solely on ground surveys and traditional measuring techniques. Today, UAV (drone) survey data is the gold standard for creating precise 3D models and elevation maps of construction sites.
When you fly a drone over your site, it captures high-resolution aerial images and GPS coordinates. This data is then processed to create a detailed digital representation of the terrain, complete with elevation information.
But not all drone data is created equal. To ensure the highest level of accuracy in your elevation grid heatmaps, you need to pay attention to the Ground Sampling Distance (GSD).
GSD refers to the distance between pixel centers measured on the ground. The smaller the GSD, the more detailed your aerial imagery and elevation maps will be. For heavy civil construction projects, a GSD of 1-5 cm is typically recommended.
Here are a few tips for collecting high-quality UAV survey data:
- Use a drone with a high-resolution camera and GPS capabilities
- Plan your flight path to ensure adequate overlap between images
- Fly at a consistent altitude to maintain a uniform GSD
- Collect data during optimal weather conditions (clear skies, minimal wind)
- Use ground control points (GCPs) to improve the accuracy of your data
By following these best practices, you’ll be well on your way to creating elevation grid heatmap reports that are accurate, detailed, and reliable—the foundation for a successful heavy civil construction project.
Generate elevation grid heatmaps using specialized software
So, you’ve collected high-quality UAV survey data for your heavy civil construction project. What’s next? It’s time to transform that raw data into actionable insights using specialized software.
Drone mapping software is the key to unlocking the full potential of your aerial images and GPS coordinates. These powerful tools process the data collected by your drone, stitching together hundreds or even thousands of images to create seamless 3D models, point clouds, and elevation maps.
But not all drone mapping software is created equal. When it comes to generating elevation grid heatmap reports for heavy civil construction, you need a solution that’s specifically designed for analyzing and visualizing terrain data.
That’s where drone topography software comes in. These specialized tools take your drone-generated elevation data and transform it into detailed topographic maps and terrain models that are easy to interpret and use for planning, monitoring, and reporting purposes.
With drone topography software, you can:
- Generate high-resolution elevation grid heatmaps
- Analyze cut and fill volumes
- Create contour lines and slope maps
- Visualize drainage patterns and water flow
- Compare pre- and post-construction terrain data
The best part? Many drone topography software solutions are cloud-based, meaning you can access your elevation grid heatmap reports from anywhere, at any time. This makes it easy to collaborate with team members, share insights with stakeholders, and make data-driven decisions on the go.
When choosing a drone topography software for your heavy civil construction project, look for a solution that offers:
- Seamless integration with your existing drone hardware and software
- Intuitive, user-friendly interface
- Robust data processing and visualization capabilities
- Customizable reporting and analytics
- Cloud-based access and collaboration features
By leveraging the power of specialized drone topography software, you’ll be able to generate elevation grid heatmap reports that are accurate, informative, and actionable—giving you the insights you need to keep your heavy civil construction project on track and on budget.
Interpret elevation grid heatmaps for cut and fill analysis
Now that you’ve generated your elevation grid heatmap report, it’s time to put that data to work. One of the most valuable applications of these heatmaps in heavy civil construction is cut and fill analysis.
Cut and fill analysis involves comparing the existing terrain to the proposed design elevations to determine where material needs to be excavated (cut) or added (fill) to achieve the desired grade. This is where your elevation grid heatmap report really shines.
By visualizing the difference between the current and planned elevations, you can quickly identify areas that require attention. Here’s how to interpret your heatmap for cut and fill analysis:
- Red areas: These indicate where the existing terrain is higher than the proposed design, meaning material will need to be cut or excavated.
- Blue areas: These represent areas where the current elevation is lower than the planned grade, indicating that fill material will need to be added.
- White or neutral colors: These areas are already at the desired elevation and require no cut or fill.
The intensity of the colors on your heatmap provides valuable insights into the magnitude of the cut or fill required. Darker shades of red or blue indicate a greater difference between the existing and proposed elevations, while lighter shades suggest smaller discrepancies.
But interpreting your elevation grid heatmap is just the first step. To truly optimize your cut and fill operations, you’ll need to dive deeper into the data and generate detailed cut and fill reports.
These reports provide specific information about the volume of material that needs to be moved, the distances involved, and the costs associated with the work. By leveraging this data, you can:
- Optimize earthwork operations for efficiency and cost-effectiveness
- Identify opportunities to balance cut and fill volumes on-site
- Minimize the need for importing or exporting material
- Plan haul routes and staging areas
- Monitor progress and adjust plans as needed
To get the most accurate cut and fill analysis, it’s essential to use high-quality elevation data and a reliable software solution. By combining drone-generated elevation data with specialized cut and fill analysis tools, you can create reports that are precise, detailed, and actionable.
Remember, the key to successful cut and fill analysis lies in the quality of your elevation grid heatmap report. By investing in accurate data collection and powerful analysis tools, you’ll be well-equipped to make informed decisions and keep your heavy civil construction project on track.
Utilize elevation grid heatmaps for effective project planning and execution
Elevation grid heatmap reports are not just useful for cut and fill analysis—they are an invaluable tool for planning and executing your entire heavy civil construction project. By leveraging these heatmaps throughout the project lifecycle, you can:
- Optimize site layout: Use elevation data to identify the best locations for temporary facilities, stockpiles, and haul routes, minimizing the need for excessive earthwork.
- Enhance communication: Share heatmaps with stakeholders to clearly illustrate the project scope, progress, and challenges, fostering better collaboration and decision-making.
- Improve resource allocation: Utilize heatmaps to determine where to focus resources, such as equipment and labor, to achieve the most efficient and cost-effective results.
- Monitor progress: Regularly update your elevation grid heatmaps to track changes in site conditions, identify potential issues, and ensure the project stays on schedule and within budget.
One of the most powerful ways to leverage elevation grid heatmaps is through the use of earthwork software. These specialized tools integrate heatmap functionality with other essential features, such as volume calculations, haul route optimization, and progress tracking.
By combining the visual power of heatmaps with the analytical capabilities of earthwork software, you can streamline your planning and execution processes, reducing waste, minimizing rework, and improving overall project outcomes.
Another critical application of elevation grid heatmaps is grade checking. Throughout the construction process, it’s essential to verify that the actual elevations on-site match the planned elevations from your design.
By comparing your as-built heatmaps to your design heatmaps, you can quickly identify any discrepancies and take corrective action before they become costly errors. This proactive approach to quality control can save you time, money, and headaches in the long run.
To get the most out of your elevation grid heatmap reports, consider the following best practices:
- Update frequently: Regularly collect new elevation data and generate updated heatmaps to ensure you’re always working with the most accurate information.
- Integrate with other tools: Use heatmaps in conjunction with other project management and analysis tools, such as scheduling software and BIM platforms, to create a comprehensive and cohesive project strategy.
- Train your team: Ensure that all relevant team members understand how to interpret and utilize elevation grid heatmaps effectively, promoting a data-driven approach to decision-making.
- Collaborate with stakeholders: Share heatmaps with clients, subcontractors, and other stakeholders to ensure everyone is on the same page and working towards common goals.
By embracing elevation grid heatmap reports as a central part of your heavy civil construction project planning and execution strategy, you’ll be well-equipped to optimize your operations, mitigate risks, and achieve success in even the most challenging projects.
